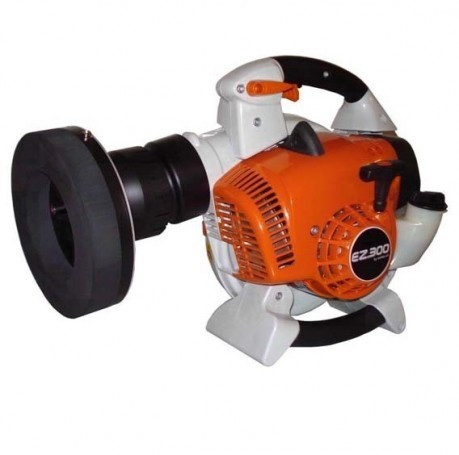

Агрегат задувки шнураt EZ300 от Zeitler не нуждается в электричестве. При помощи мощного 2-тактного мотора шнур может задуваться или всасываться без внешнего источника питания. Агрегат предназначен для использования в строительстве туннелей, подземных кабельных линий, а ткаже строительстве мостов и горных коммуникаций. Агрегат предназначен для кабельных каналов от Ø 25 до 200 мм (внутренний диаметр труб). Вода, мусор, грязь и мелкие части выдуваются в одном рабочем процессе.
Facts:
- Blow or suck pull line (tensile strength up to 300 kg) without compressor;
- Independent of electric power supply;
- For all commercial pipe work (internal diameter from 25 to 200 mm);
- For all network construction such as civil engineering, ground work, roads, tunnels, bridges, snow cannons, cable car construction, mountain railway;
- For lengths of 1000 m and more (current record 2’850 m);
- Huge time saving in cable feeding: Cleaning, taking water out, calibrating and line feeding in one step;
- Lightweight and compact;
- Excellent accessibility, even in confined spaces;
- Easy to handle;
- Double function (blowing and suction mode);
- Suitable in any car boot;
- Value for money.
Standard equipment in strong plastic case:
- 1 x Stringing Gun EZ300;
- 5 x shuttle complete sets in boxes, free choice of shuttle (25-200 mm);
- 1 x box with parachutes: 1 x for Ø of 60 to 100 mm, 1 x for Ø of 100 to 150 mm;
- 1 x cone orange, internal conduit Ø from 50 to 120 mm, with metallic head, for difficult access or frayed conduit end;
- 1 x special equipment for smaller diameter, consisting of special black adapter plus special nozzle for int. Ø of 25 to 50 mm;
- 1 x foam collar Ø 140 mm with pull line supply;
- 1 x foam collar Ø 200 mm with pull line supply;
- 1 x injection unit;
- 1 x suction unit;
- 1 x fuel can 0.5 l (empty);
- 2 x pull line rolls ø 1mm, tensile strength approx 24 kg, roll of approx 900 m;
- 1 x box with all assembly material required for shuttle assembling;
- 1 x 2 m air hose connection;
- 1 x operating instruction manual.
